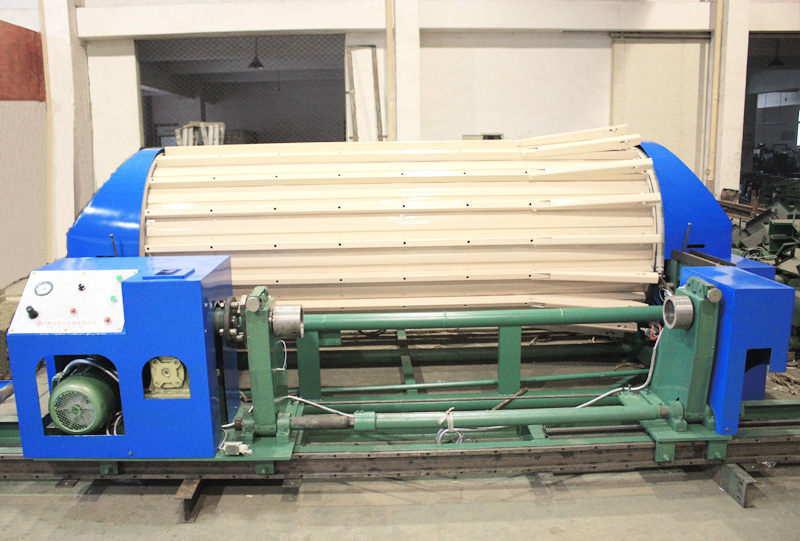

ProductName:MODEL YL2003 HIGH SPEED SECTIONAL WARPING MACHINE
ProductNO.:Pro2012420185722
Price:
AddTime:2012/4/20 18:59:45
Other： USAGE YL2003 Series cone warping machine is mainly used to the cone warping of heavy twist folament yarn fabrc , yarn dyed fabric, silk fabric and wool fabric. It is a superior equipment before weaving of shuttleless weaving machine such as air-jet loom, rapier loom and gripper loom, with a high performance and reasonable price.
PERFORMANCE 1. This machine adopts machine-electricity-gas all-in-one equipment, using in drag and Beaming tension damping respectively, with the stronger ddrag and the flexible tension damping 2.This machine adopts electromagnetic adjustable speed electric machine, making and beaming up to stepless adjustable speed, high efficiency and safety. 3.This machine can conform the use of equipments to increase the warping greatly and reduce cost of production. 4.Steel-structure frame makes it steady and reliable to meet the request of warping before weaving of all classes material. 主要技术参数 Main technical parameter 门幅 Door range 1800~3600mm 适用经轴直径 Diameter of the suitable warp beam ≤810mm 整经速度 Speed of warping 无级调速0-400(m/min) Stepless speed regulation 0-400(m/min) 倒轴转速 Pour the rotational speed of the axle 无级调速0-50(m/min)Stepless speed regulation 0-50(m/min) 导条位移 Lead a piece of displacement 0.467~2.262mm/r 羊角高度 Sheep’s height of horn 3°~9°无级可调3°~9°(stepless speed regulation) 输入电压 lnput voltage 3*380v(t10﹪) 装机功率 Power of installation 10.5kva5 滚筒直径 Diameter of the cylinder 1200cm
